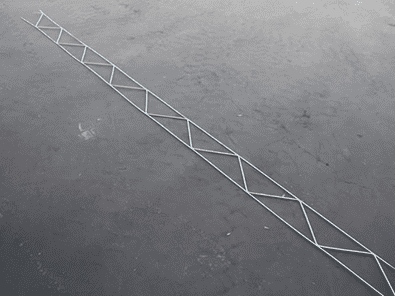

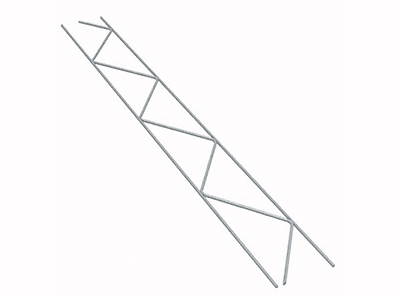

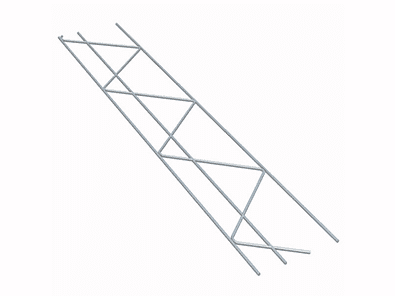

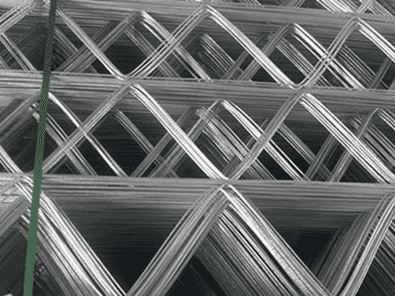

The Truss Mesh Reinforcement is also called W-type butt welded truss Mesh , which is generally welded with galvanized low carbon steel wire or welded with low carbon steel wire and then galvanized. Truss Mesh reinforcement can be divided into butt welded truss mesh and pressure welded truss mesh. It is mainly used in the construction industry as a building material for Shuleshe board meshes and partition meshes, wall meshes, roadbed steel meshes, and hillside greening and soil spraying. Externally heated galvanized can be used as a protective mesh in the high-salt area of the flower trellis mesh. It can also be made into shelves, heavy goods shelf meshes, etc.

Features:

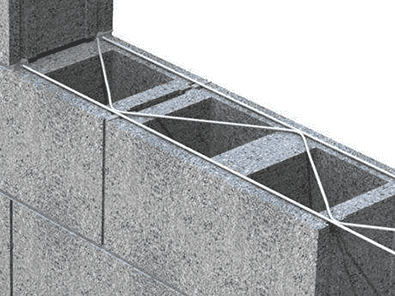

1. Strengthen various masonry walls.
2. Greatly reduce cracks that can generate thermal stress.
3. Enhanced resistance to water penetration because cracks are controlled.
4. Increase the transverse flexural strength and elasticity.
5. Improve the performance of masonry walls under various stresses.

Usual format:

Available Materials: hot-dip galvanized, electro-galvanized or stainless steel

Wire Diameter: 1.8mm - 2.0mm

Commonly Used Mesh: 5X5cm, 5X10cm, 10X10cm, 10X20cm

Common Size of Mesh: 1X25X2.5m

Anti-Corrosion Treatment: overall dip or surface spray treatment
